Cement Resistor Series
Cement Resistors
Cement Resistors

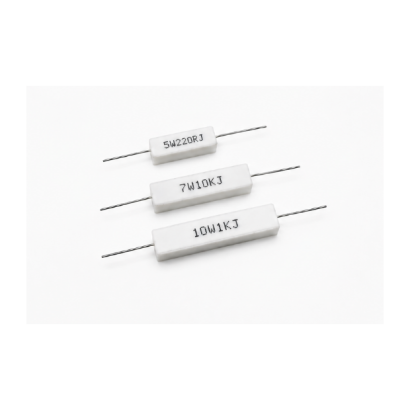

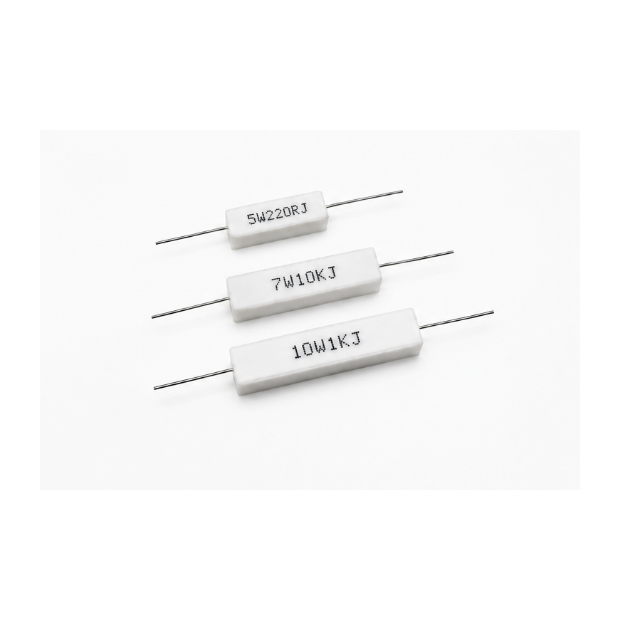

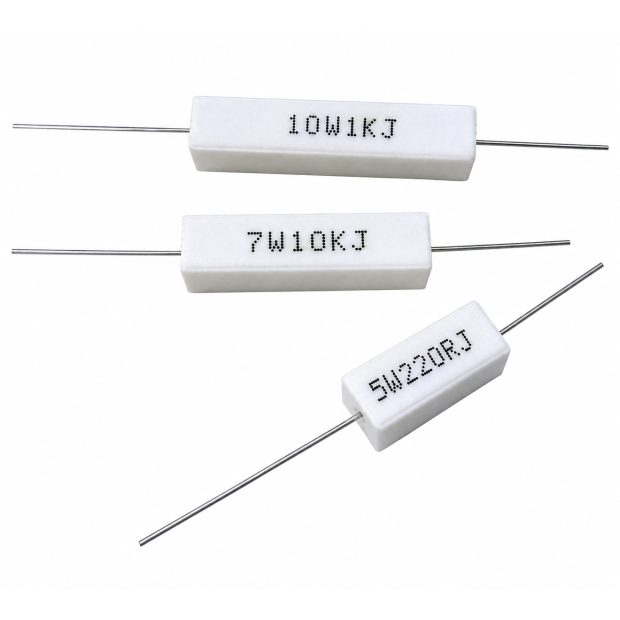

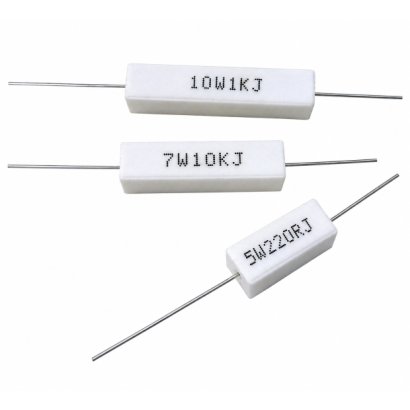

SQP Series
Featuring a heat-resistant ceramic housing filled with non-flammable cement, the SQP Series utilizes a classic axial horizontal lead configuration. Resistance values below 100Ω use a robust wirewound core for excellent surge resistance, while resistance values above 100Ω use a stable metal oxide film core. With a wide operating temperature range from -55℃ to +275℃, the series provides excellent heat dissipation and instantaneous overload protection.
FEATURES
- Small size and low cost
- Super heat dissipation, stable in high temperature
- Instant overload capability

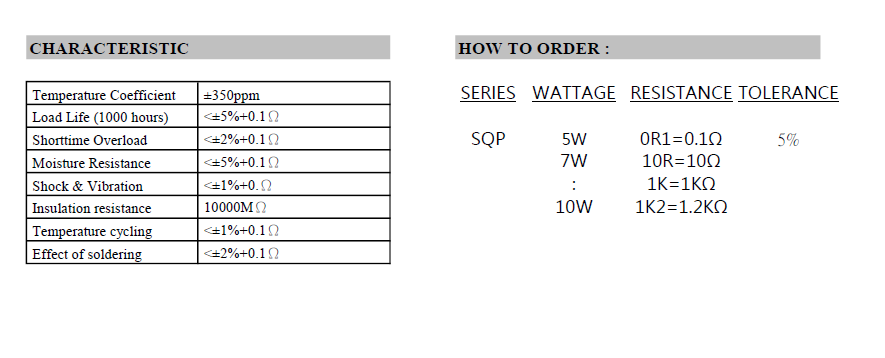

- Standard tolerance: 5% (1% is available)
- Working temperature range: -55℃ ~ 275℃
- Wirewound core used when resistance lower than 100Ω
- Metal oxide film core used when resistance higher than 100Ω
MATERIAL
- House: Ceramic case housed
- Filling: Non-flammable cement
- Element: Wirewound core (<100Ω) / Metal oxide film core (>100Ω)
- Lead: Tin plated copper wire
Technical FAQ for R&D and Procurement
Q: How are the two core materials (Wirewound vs. Metal Oxide Film) used in the SQP Series Cement Resistors?
A: The SQP Series uses an optimized core structure according to the resistance value. For resistance values below 100Ω, a wirewound core is used to provide greater high-current handling and pulse protection capability. For resistance values above 100Ω, a metal oxide film core is used to provide a wider high-resistance range together with excellent high-temperature stability.

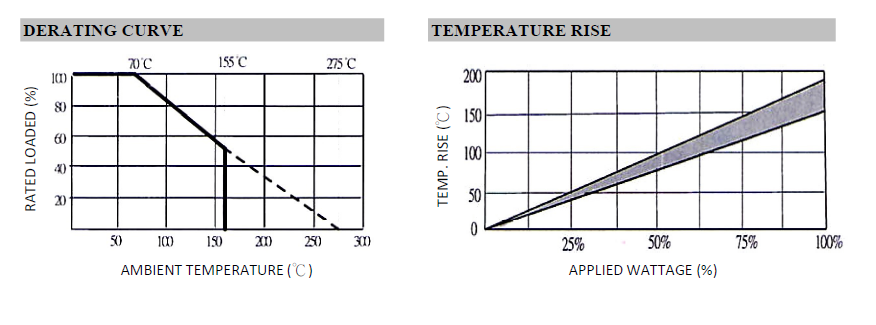

Q: What are the heat dissipation performance and operating temperature limits of this Cement Resistor Series?
A: The SQP Series features a heat-resistant ceramic housing filled with flame-retardant cement and supports an operating temperature range from -55℃ to +275℃. It provides excellent heat dissipation and instantaneous overload capability, making it highly suitable for high-power supplies and industrial equipment.
Q: What resistance tolerance options are available for SQP Horizontal Cement Resistors?
A: The standard resistance tolerance for this series is ±5%. For advanced control circuits requiring more precise resistance matching, a customized ±1% precision tolerance option is also available.
