Metal Oxide Resistors
Metal Oxide Resistors

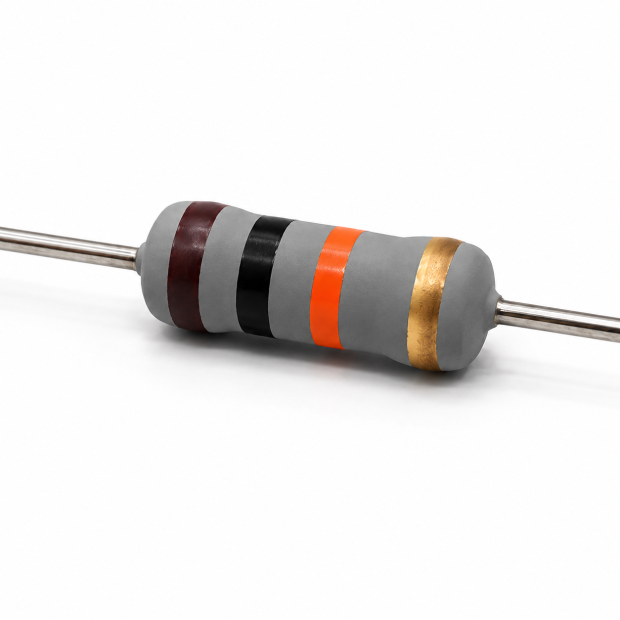

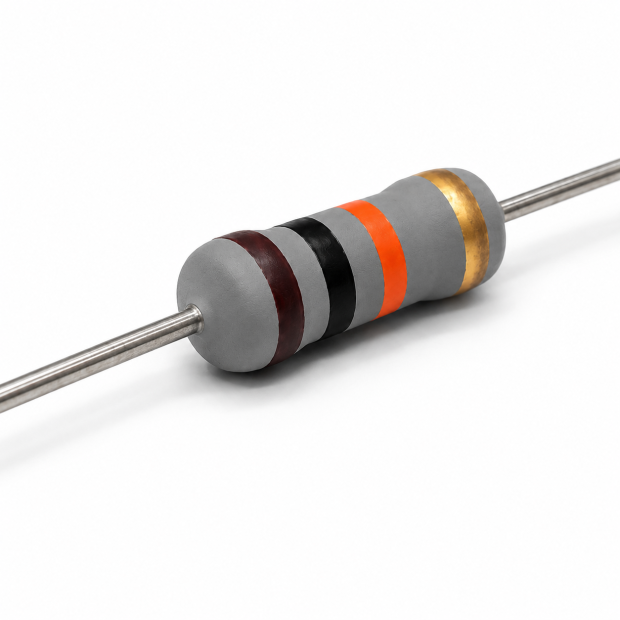

MOF & MOF-S Series
Manufactured with high-purity ceramic cores and deposited oxide film, these metal oxide resistors provide excellent electrical endurance and high-temperature resistance. With power ratings ranging from 1/4W to 5W and an operating temperature of up to +200ºC, the series also features a flameproof coating and is widely used in industrial and electronic applications requiring high durability.
FEATURES

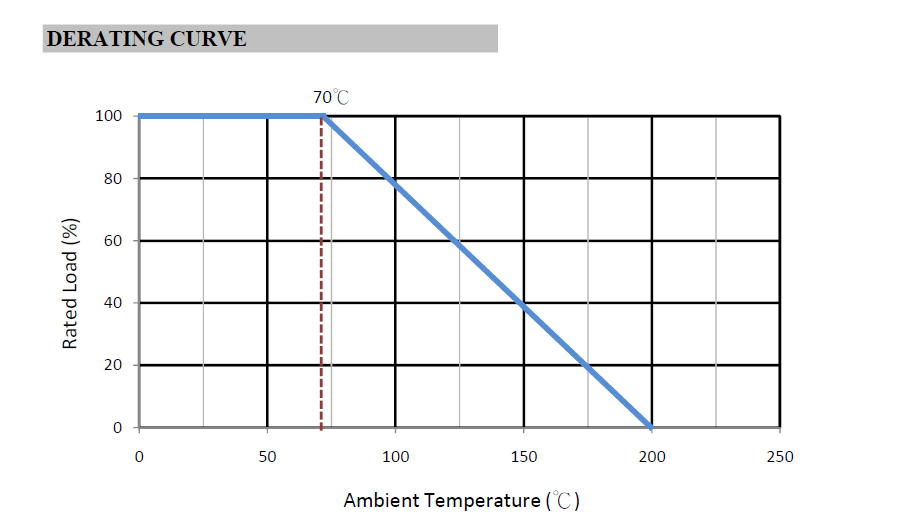

- Power rating: 1/4W to 5W at 70°C
- Superior electrical performance-commonly used in application with high endurance demands
- Standard tolerance: ±5% (consult factory for 1%)
- Standard range: 10R-1M in E24 series

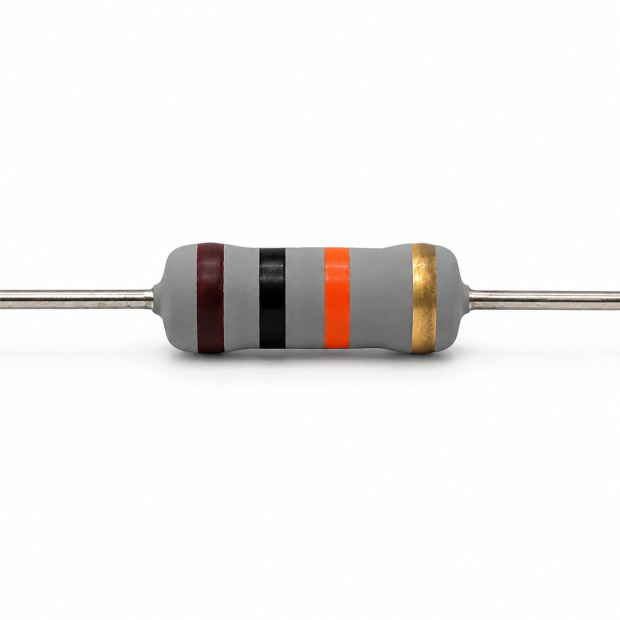

- Color band marking, gray body color
- Flameproof coating
- Mini size available (As MOF-S type)
- Operating temperature: -55ºC ~ +200ºC
MATERIAL
- Element: deposited oxide film
- Core: high purity ceramic Al2O3
- Termination: standard solder-plated copper lead

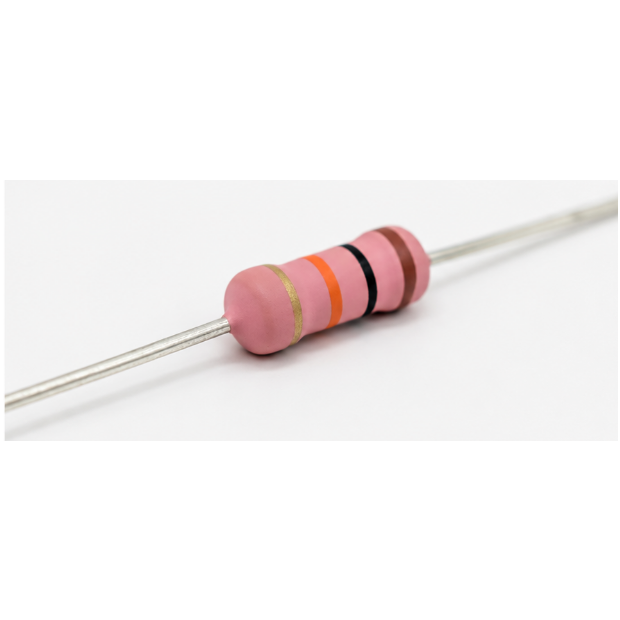

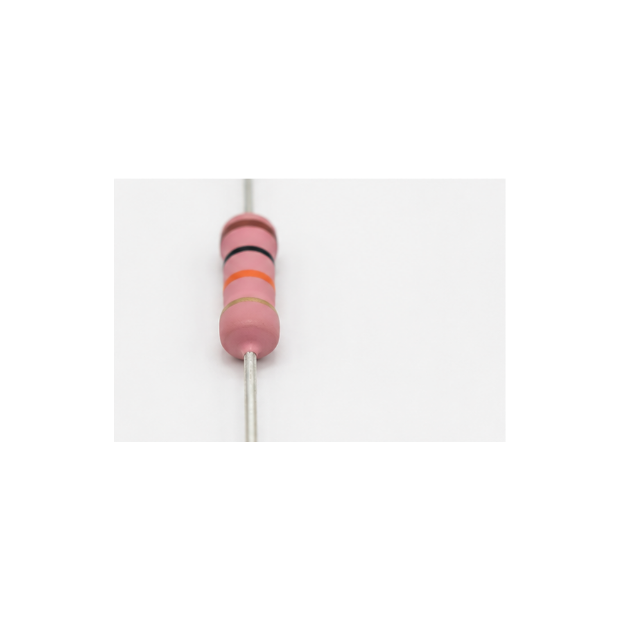

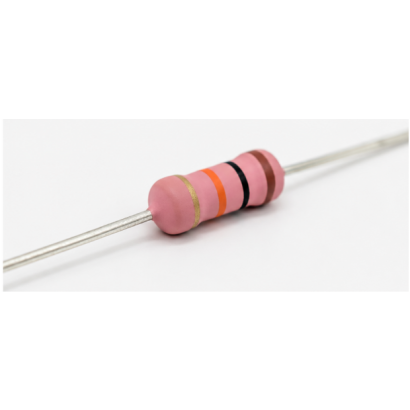

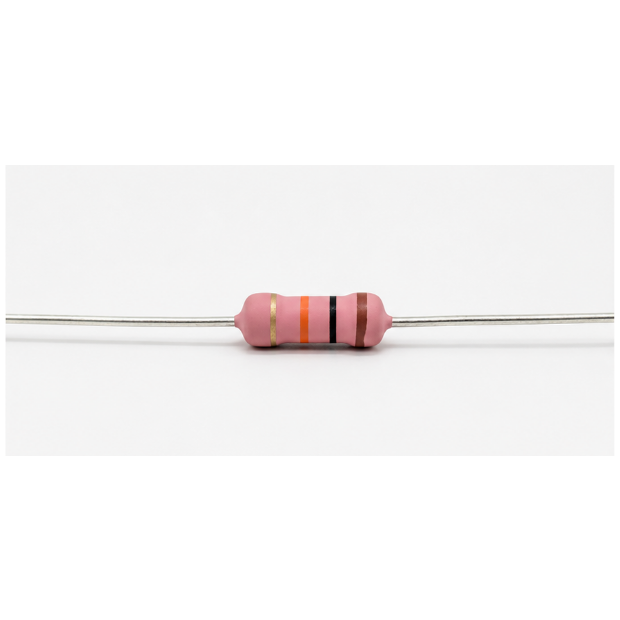

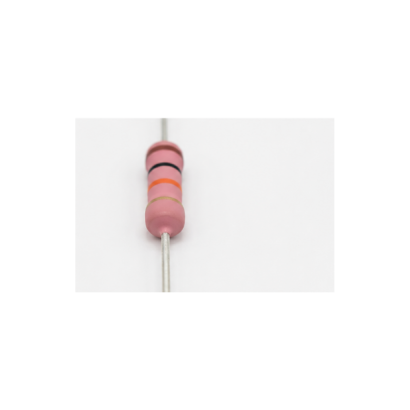

- Coating: gray silicone for standard & mini size (pink is available for Mini-size only when request)
Technical FAQ for R&D and Procurement
Q: What are the main differences between the MOF and MOF-S Series, and what coating colors are available?

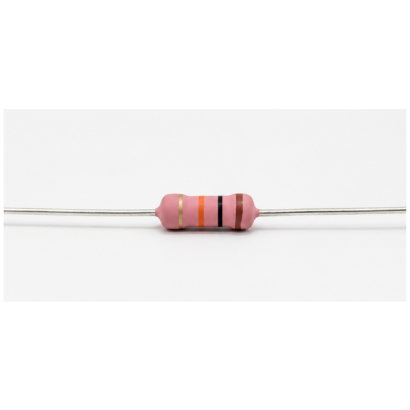

A: MOF is the standard-size metal oxide resistor, while MOF-S is the mini-size version designed for high-density circuit layouts. The entire series uses a standard gray silicone flameproof coating. For MOF-S mini-size models, a pink coating is also available upon customer request.
Q: What are the operating temperature and power rating ranges of these metal oxide resistors?
A: This series supports a wide operating temperature range from -55ºC to +200ºC, providing excellent electrical stability in high-temperature environments. Power ratings range from 1/4W to 5W at 70°C, making the series suitable for circuits requiring high durability and high-load performance.
Q: What are the resistance range and tolerance specifications for this series?
A: The standard resistance range is from 10R to 1M in accordance with the E24 series, with a standard resistance tolerance of ±5%. For circuit applications requiring higher precision, such as ±1%, please contact us for special customization inquiries.
