Metal Film Resistors
Metal Film Resistors

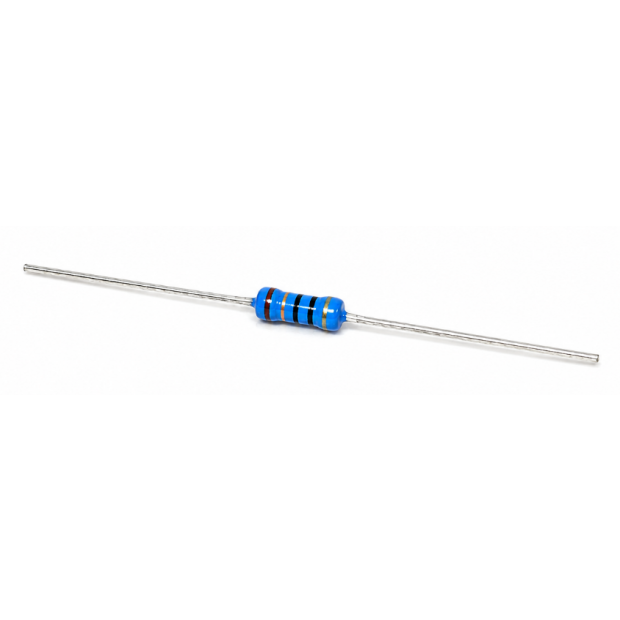

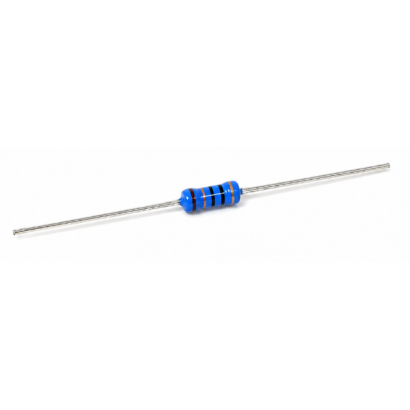

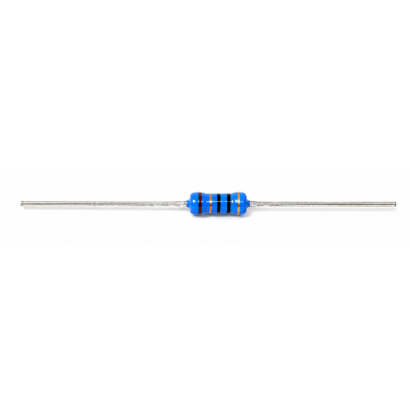

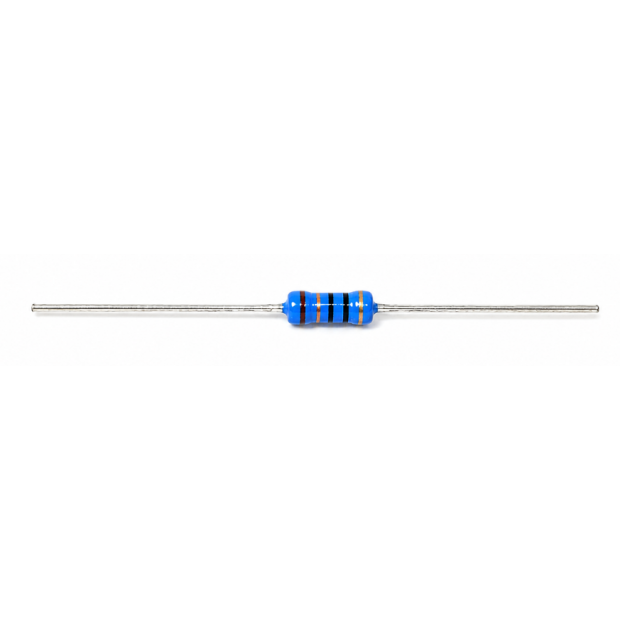

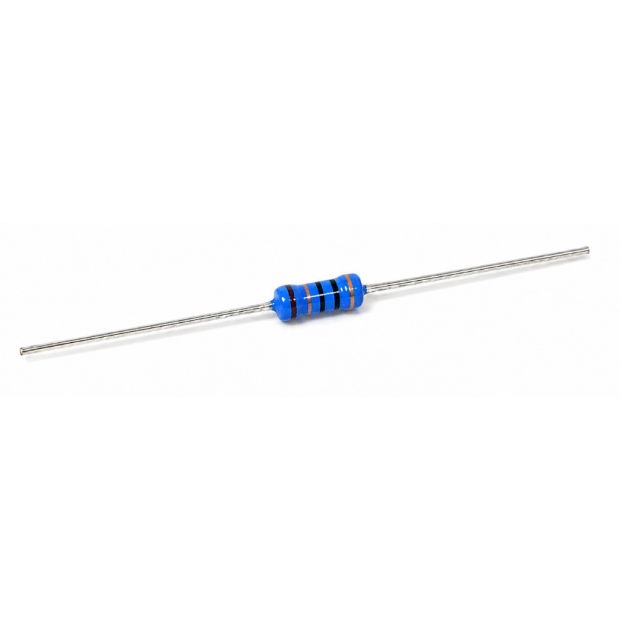

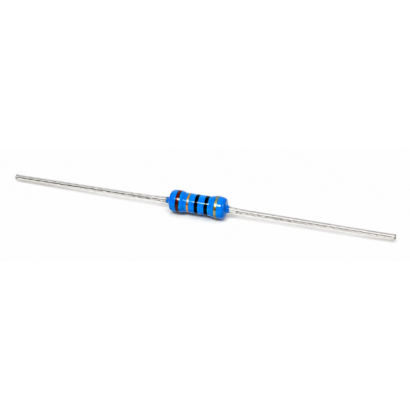

MF/FMF & MF-S/FMF-S Series
Manufactured with high-purity ceramic cores and vacuum-deposited nickel-chromium alloy (Ni-Cr Alloy) technology, these metal film resistors provide superior electrical performance and an exceptionally low temperature coefficient of resistance (T.C.R). Available in both standard and mini sizes, they support a wide range of high-precision industrial and electronic circuit applications.
FEATURES

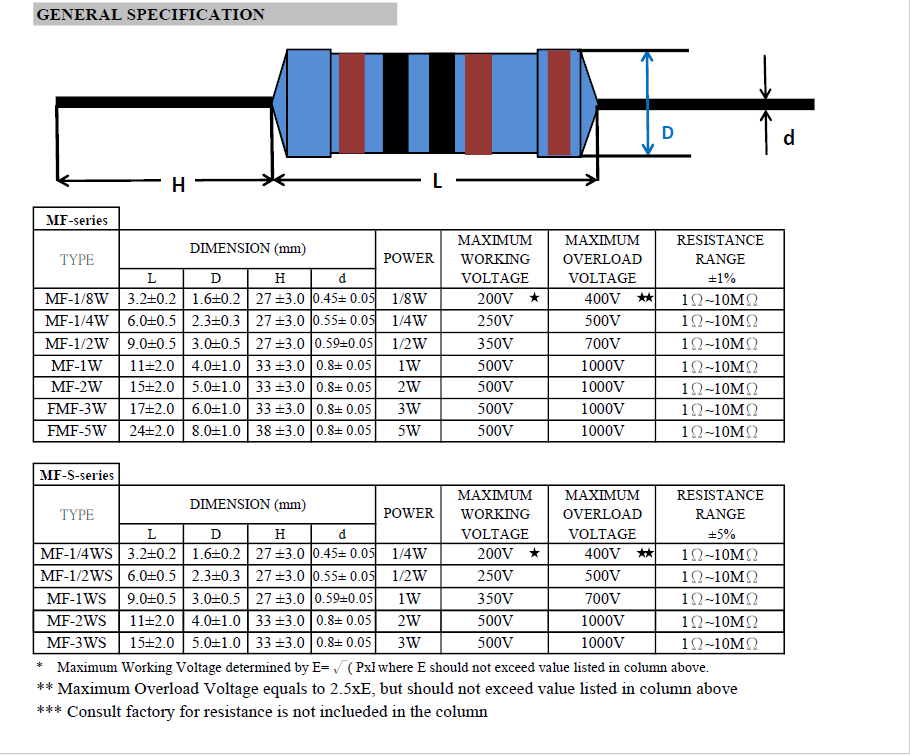

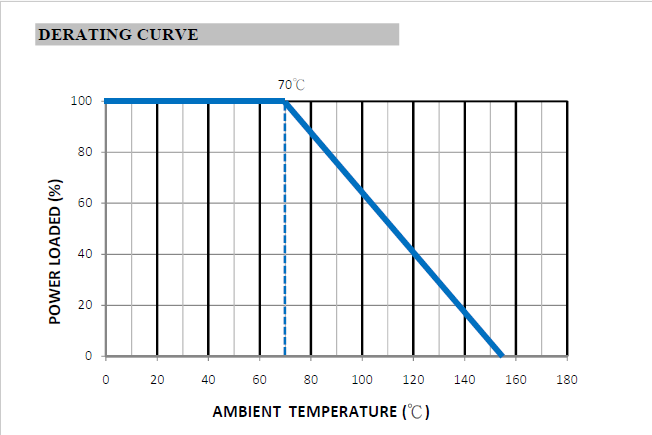

- Power Rating: 1/8W to 2W at 70°C
- Superior electrical performance
- Standard T.C.R: ±100PPM (15/25/50 ppm is available), FMF 5W is 100ppm
- Standard Tolerance: ±1% (available 0.1% - 5%)
- Standard Value: 10R-1Meg in E24/E96 series
- Body Color: blue
- Flameproof coating available (As FMF type)
- Mini size available (As MF-S type)
- Operating Temperature: -55ºC ~ +155ºC
MATERIAL
- Element: Vacuum-deposited Ni-Cr Alloy
- Core: High purity ceramic Al2O3
- Termination: Standard solder-plated cooper lead
- Coating: Epoxy (FMF is silicone)
Technical FAQ for R&D and Procurement
Q: What are the differences between the MF and MF-S Series, and which model should be selected for flameproof applications?
A: MF is the standard-size metal film resistor, while MF-S is the mini-size version designed for high-density PCB layouts. For applications with higher safety requirements, the FMF type is recommended. It features an external silicone flameproof coating to provide enhanced safety in high-temperature environments.
Q: What T.C.R and resistance tolerance options are available?
A: The standard T.C.R for this series is ±100PPM. For higher-precision signal processing applications, 15, 25, or 50 PPM options are also available, while the FMF 5W model is rated at 100ppm. Standard resistance tolerance is ±1%, with customized options ranging from 0.1% to 5% depending on customer requirements.
Q: What are the available power ratings and resistance ranges for these metal film resistors?
A: This series supports power ratings from 1/8W to 2W at an ambient temperature of 70°C. Standard resistance values range from 10R to 1Meg in accordance with the E24 and E96 series, meeting the design requirements of a wide range of precision electronic circuits.
