Through-Hole Resistor Series
Carbon Film Resistors
Carbon Film Resistors

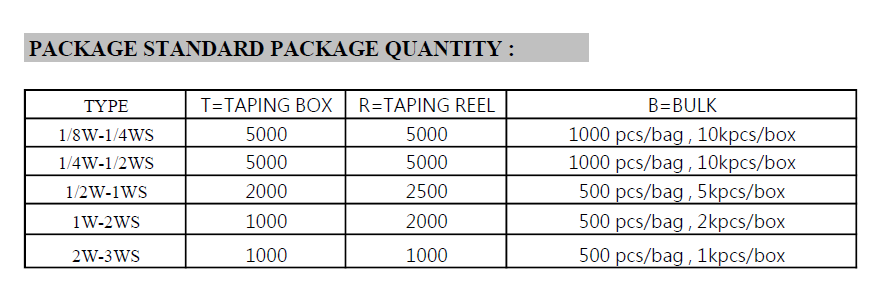

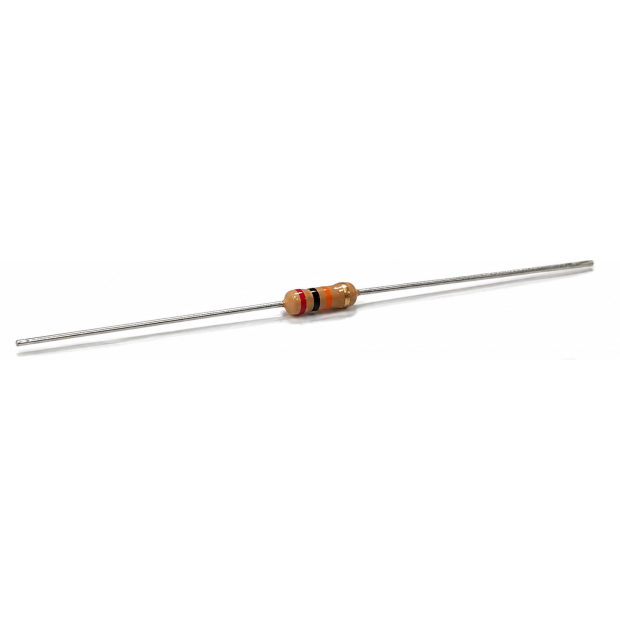

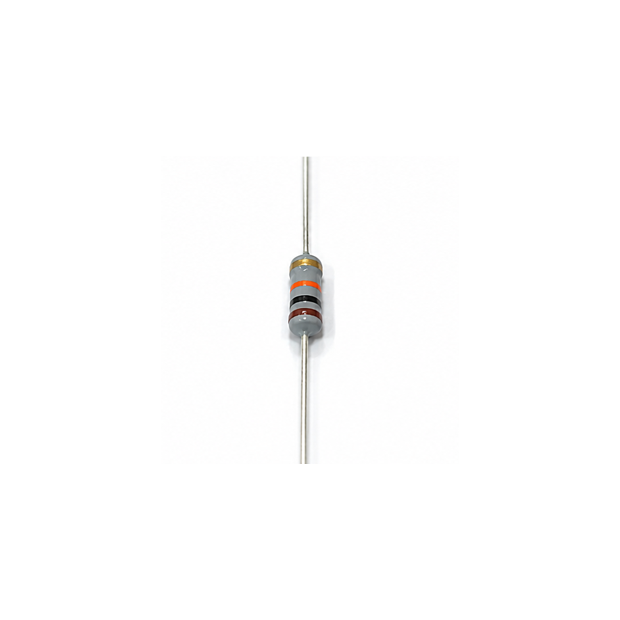

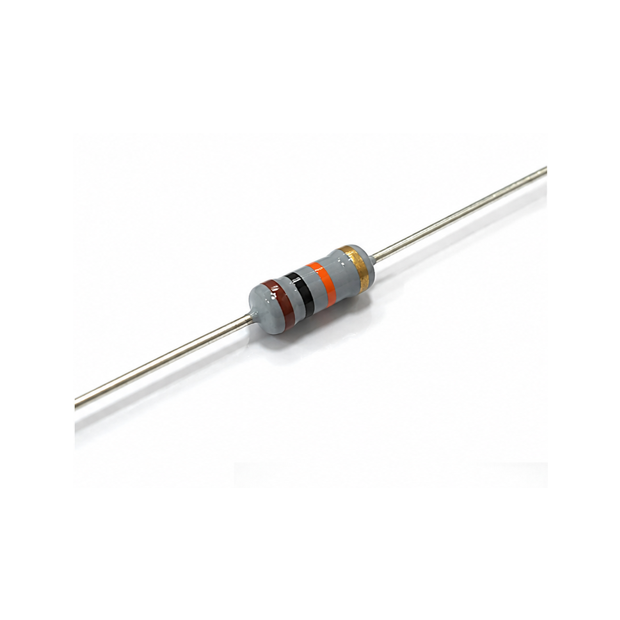

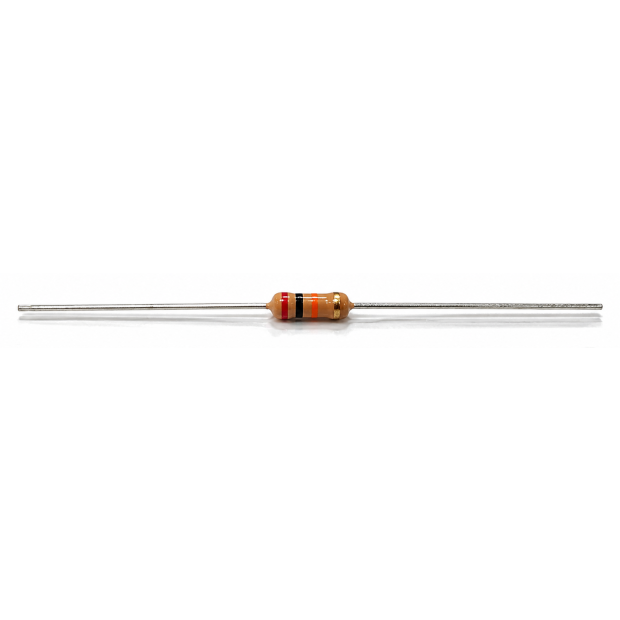

CR/FCR & CR-S/FCR-S Series
Manufactured using high-purity ceramic cores and a deposited carbon film process, these carbon film resistors deliver excellent cost efficiency and long-term operating stability. Available in both standard and mini sizes, they support a wide range of industrial and consumer electronics applications.

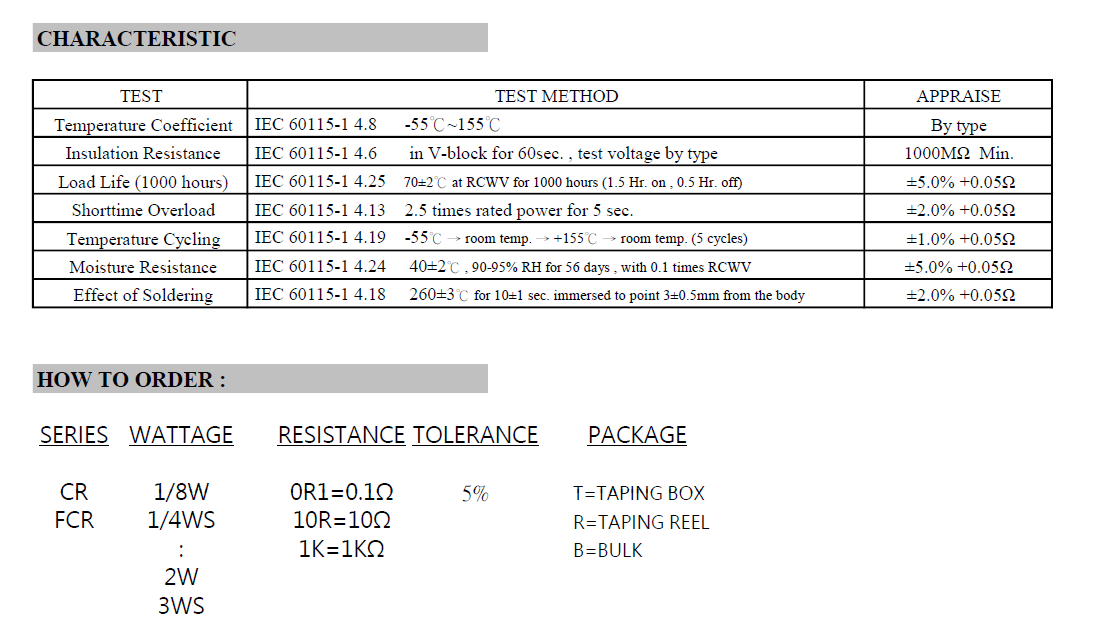

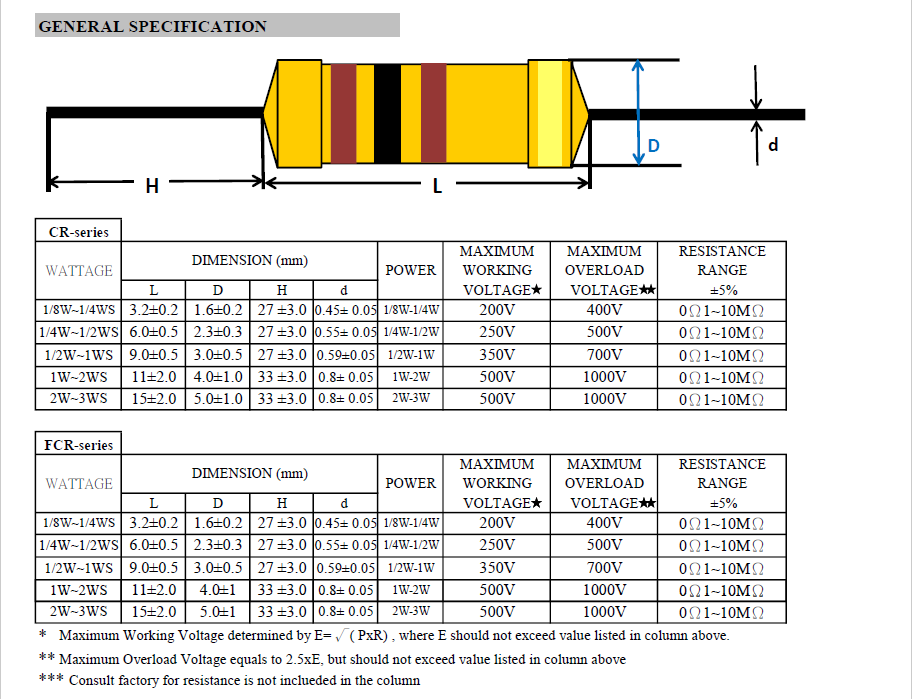

FEATURES
- Industry's lowest cost
- Excellent long term stability
- Used in all kinds of application
- Standard Value: 1R-10Meg in E24 series
- Standard tolerance: ±5% (available ±2%)
- Body Color: yellow-brown (biege)
- Color band marking
- Flameproof coating available (As FCR type)
- Mini size available (As CR-S type)

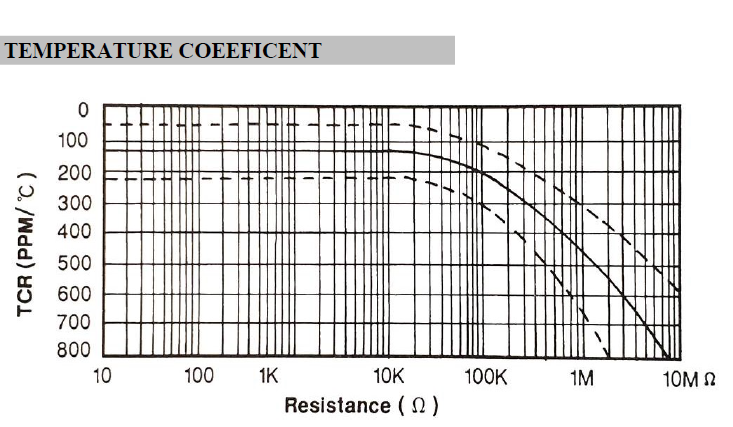

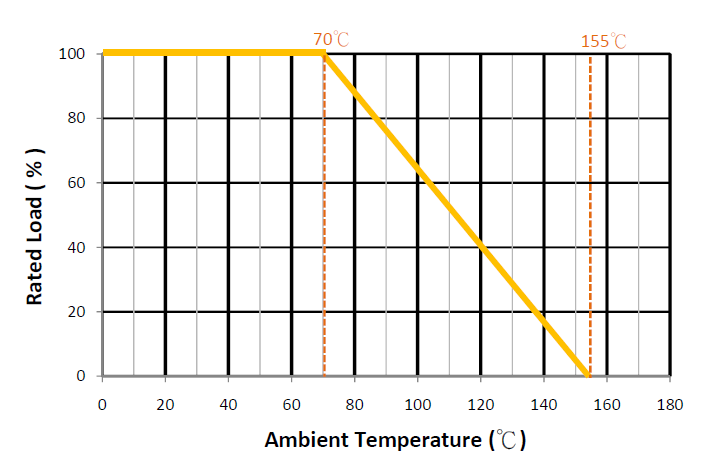

- Operating Temperature: -55ºC ~ +155ºC
MATERIAL
- Element: Deposited Carbon Film
- Core: High Purity Ceramic Al2O3
- Termination: Standard solder-plated cooper lead
- Coating: Epoxy, (FCR is grey silicone)
Technical FAQ for R&D and Procurement
Q: What are the main differences between the CR/FCR and CR-S/FCR-S Series?
A: CR is the standard-size carbon film resistor, while CR-S is the mini-size version developed for high-density PCB layouts. Models with an “F” designation, such as FCR and FCR-S, feature a grey silicone flameproof coating, making them suitable for industrial equipment, power modules, and other applications with higher safety requirements.
Q: What are the standard resistance values and tolerance ranges for this carbon film resistor series?
A: The standard resistance range is from 1R to 10Meg in the E24 series, with a standard tolerance of ±5%. For circuit designs requiring higher signal accuracy, ±2% tolerance options are also available.
Q: What is the operating temperature range, and what coating materials are used?
A: This series supports a wide operating temperature range from -55ºC to +155ºC. Standard models use an epoxy insulating coating with a yellow-brown (beige) body, while flameproof models use a grey silicone coating. All versions feature a high-purity ceramic (Al2O3) core to ensure excellent long-term operating stability.
Looking for a Reliable Carbon Film Resistor Supplier?
With over 40 years of manufacturing experience, LIAN-SHENG ELECTRONIC CO.,LTD. provides global electronic component distributors and R&D teams with stable quality, fast delivery, and reliable passive component solutions.
Contact Our Sales Team
