MHL Series

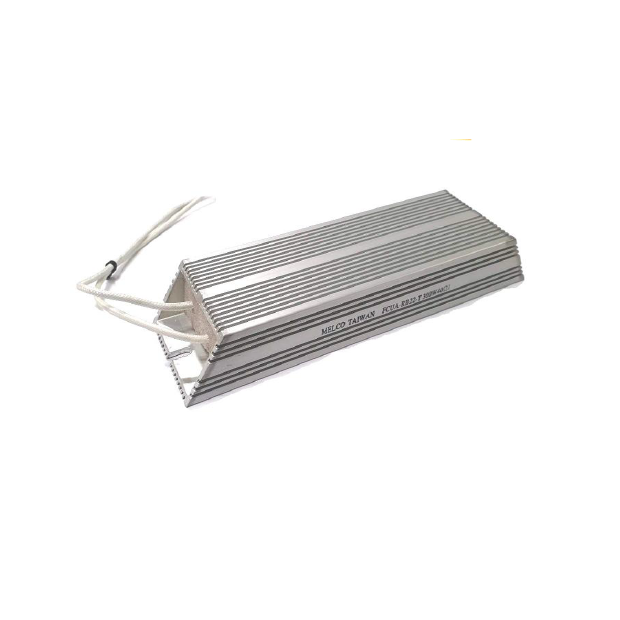

Featuring a high-heat-dissipation aluminum alloy case, the MHL Series is constructed with alloy resistance wire wound around a ceramic core and filled with high-purity silica sand (SiO2 sand), providing excellent thermal conductivity and insulation protection. Designed for high-power applications and short-time overload circuits, the series is equipped with heatproof wire terminals to deliver robust and stable power dissipation and braking performance.
FEATURES
- Design for high power purpose
- Excellent for short-time overload
- High heat dissipation aluminum case packaging
- Robust mechanical protection and moisture resistance
MATERIAL
- Case: Aluminum case
- Element: Alloy Resistance Wire wound on pottery core
- Termination: Heatproof wire
- Filling: SiO2 sand
Technical FAQ for R&D and Procurement
Q: What heat dissipation structure and internal filling material are used in the MHL Series aluminum case resistors?
A: The MHL Series features a high-thermal-conductivity aluminum case. Internally, alloy resistance wire is wound around a ceramic core and filled with high-purity silica sand (SiO2 sand), providing excellent thermal conductivity and high-voltage insulation protection.

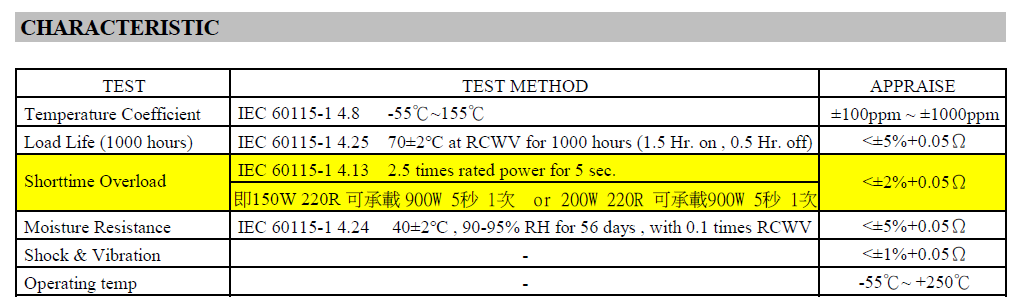

Q: What are the advantages of the MHL Series for overload resistance and high-power applications?
A: The MHL Series is designed for high-power applications and offers excellent short-time overload capability, allowing it to effectively absorb high-energy surges. It is particularly suitable for demanding applications such as inverter braking, motor starting, and power discharge circuits.
Q: What type of termination wire is used in the MHL Series?
A: The MHL Series uses heatproof wire for its terminations, enabling it to withstand the high temperatures generated during high-current operation while maintaining connection safety and reliable insulation under high-power operating conditions.
