Through-Hole Resistor Series
Metal Film Resistors
Metal Film Resistors

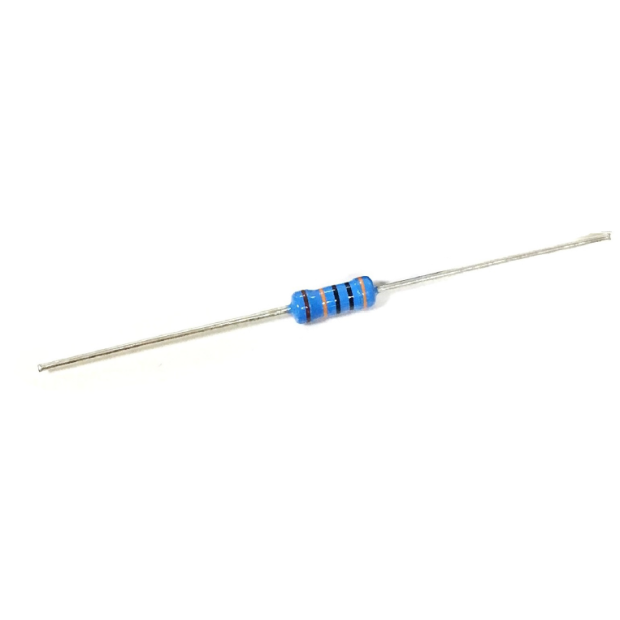

MF-0 Series
Manufactured with a high-purity alumina ceramic core and vacuum-deposited nickel-chromium alloy (Ni-Cr Alloy) film, the MF-0 Series delivers excellent electrical stability, low noise, and high precision. Power ratings range from 0.4W to 0.6W at 70°C, with a standard T.C.R of ±50PPM, making it suitable for precision electronic circuits requiring high reliability and accurate signal performance.
FEATURES

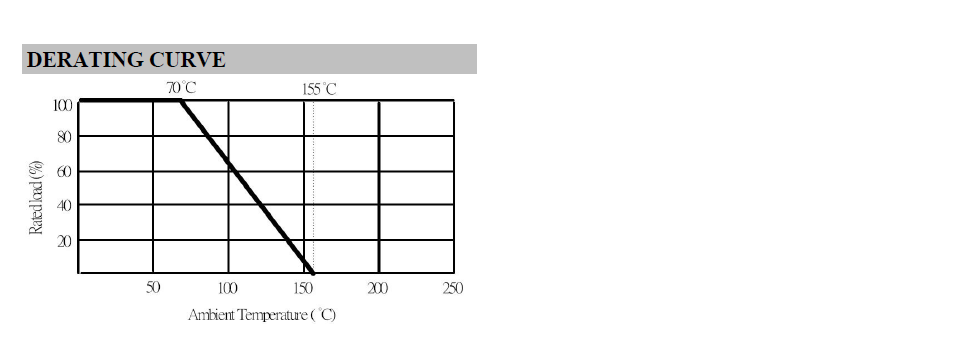

- Power Rating: 0.4W to 0.6W at 70°C
- Superior electrical performance
- Standard T.C.R: ±50PPM (available 15/25 ppm)
- Standard Tolerance: ±1% (available 0.1% - 5%)
- Standard Value: 10R-1Meg in E24/E96 series
- Body Color: blue with color band marking
- Flameproof coating available (As FMF type)
- Operating Temperature: -55ºC ~ +155ºC
MATERIAL
- Element: Vacuum-deposited Ni-Cr Alloy
- Core: High purity ceramic Al2O3
- Termination: Standard solder-plated cooper lead
- Coating: Epoxy
Technical FAQ for R&D and Procurement
Q: What are the power ratings and operating temperature range of the MF-0 Series metal film resistors?
A: The MF-0 Series supports power ratings from 0.4W to 0.6W at an ambient temperature of 70°C, with an operating temperature range from -55ºC to +155ºC. The resistors maintain excellent electrical stability even under high- and low-temperature cycling conditions.
Q: What T.C.R and resistance tolerance options are available for the MF-0 Series?
A: The standard T.C.R is ±50PPM, with 15 or 25 PPM options available for high-precision applications. Standard tolerance is ±1%, with customized options ranging from 0.1% to 5% depending on project requirements. Resistance values range from 10R to 1Meg in E24/E96 series.
Q: Is a flameproof coating option available for the MF-0 Series?
A: Yes. The standard MF-0 Series features a blue epoxy coating. For end products requiring flame-retardant performance and additional safety compliance, an FMF flameproof coating version is available.
Looking for High-Precision, Low-TCR Metal Film Resistors?
LIAN-SHENG ELECTRONIC CO.,LTD. provides stable, reliable, and high-quality passive component solutions designed to meet the demanding requirements of global R&D teams and electronic component distributors.
Contact Our Sales Team
